LSx V8 Volvo 700-900 series engine mounts
The moment everybody has been waiting for, the arrival of the 700/900 series motor mount kit! These mounts are not hodge-podged pieced together, fabricated mounts from arbitrary parts – they were designed & engineered from day one specifically for use in this car, with any LS based engine (car OR truck). They allow for clearance not only at the hood from both the truck intake manifold and alternator, but also on the passengers side for the stock a/c compressor, and in the front for use of the stock Volvo 960 larger radiator & electric fan (depending on transmission used and how far forward that pushes the engine, of course). They’re slotted left and right to allow for precise chassis fitment (since honestly there are so many different transmission, header, and accessory combinations, there are endless ways people will want to use these mounts to locate their engine). They were also designed to keep the engine as low and as far back as possible in order to help keep CG as low as possible for those of you using either automatic or short manual transmissions. They’ve also been designed to adapt to the longer T56 6 speed transmission that so many people use. Unfortunately however, the T56 is a long transmission and does put the engine a bit farther froward in order to line the shifter up correctly with the shifter hole in the car.
The kit uses BMW motor mount bushings for a variety of reasons. One of the biggest reasons is that the design of the V8Volvos.com kit mimics that of a stock European (BMW, Volvo, etc.) motor mount design, whereas the arm is attached rigidly to the engine, and then the engine assembly sits on top of the OEM rubber isolator. The BMW bushings were designed exactly for this purpose, and have been long tested to withstand the abuse of high-hp engine loads. They’re inexpensive, reliable, and replaceable. There is reasonable aftermarket support for purchasing replacement bushings later on, or upgrading to something of ‘higher performance’. And in case of an accident, they can shear and still allow the engine to submarine under the vehicle instead of being pushed directly into the firewall like the original factory Volvo mounts. We recommend the OEM rubber for most installations.

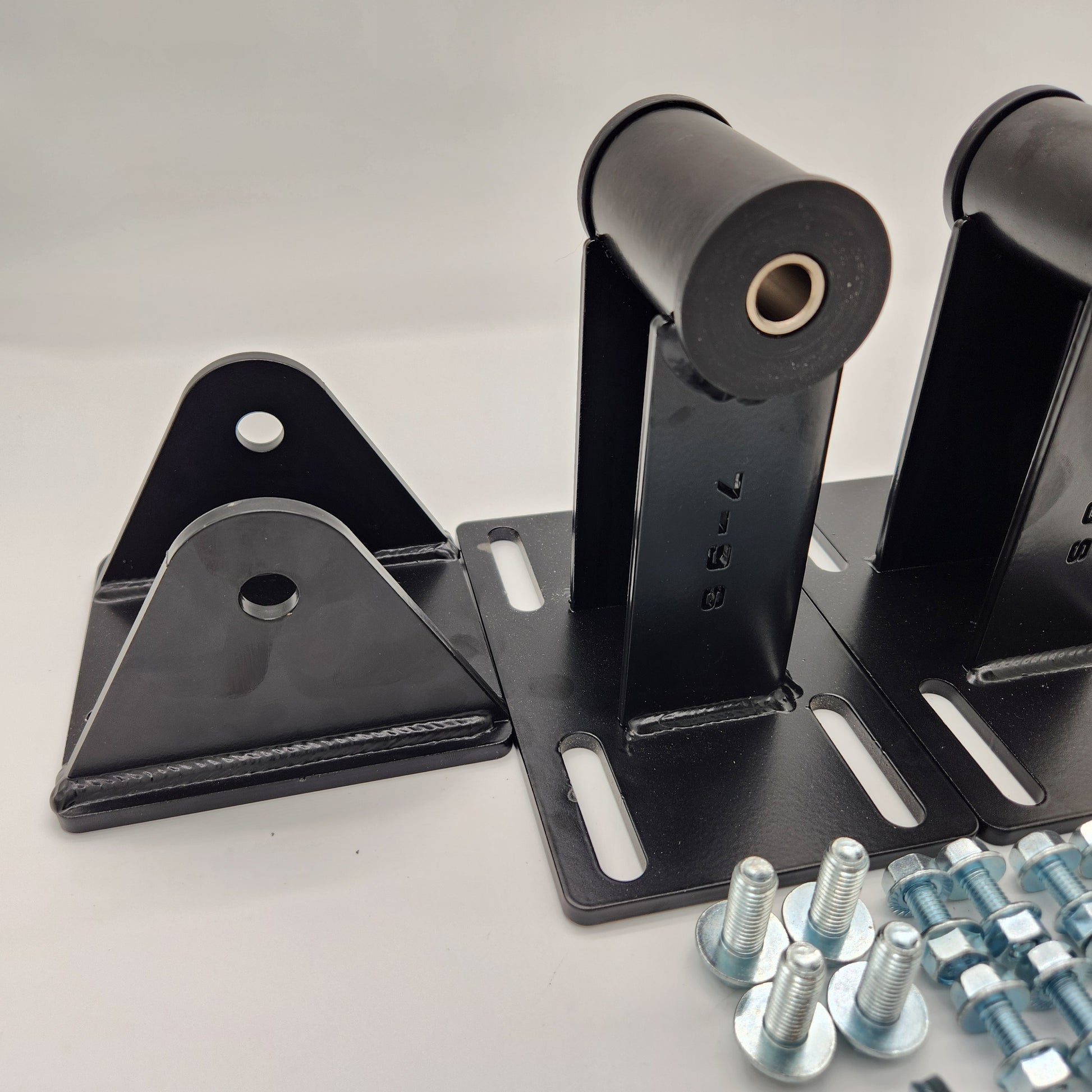

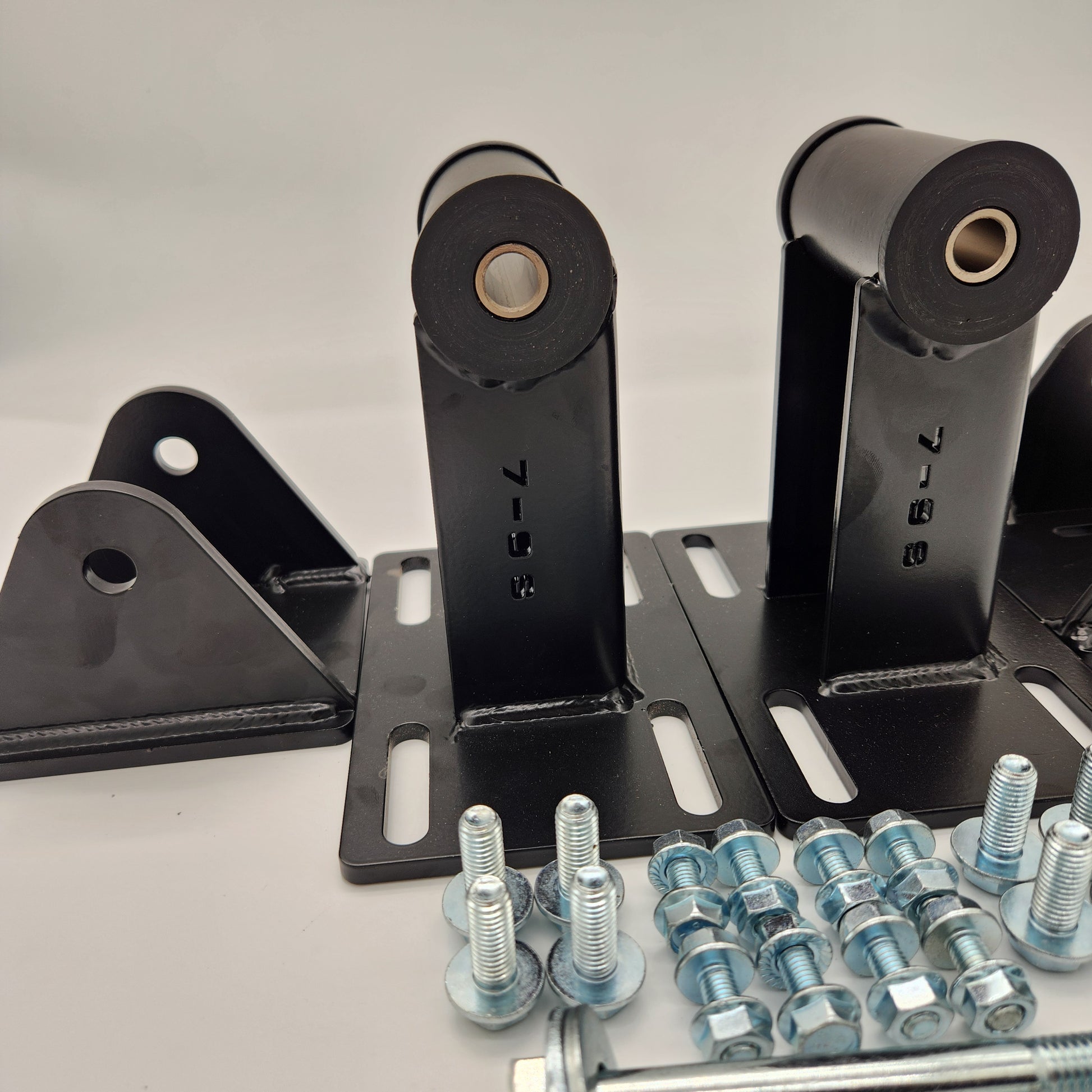

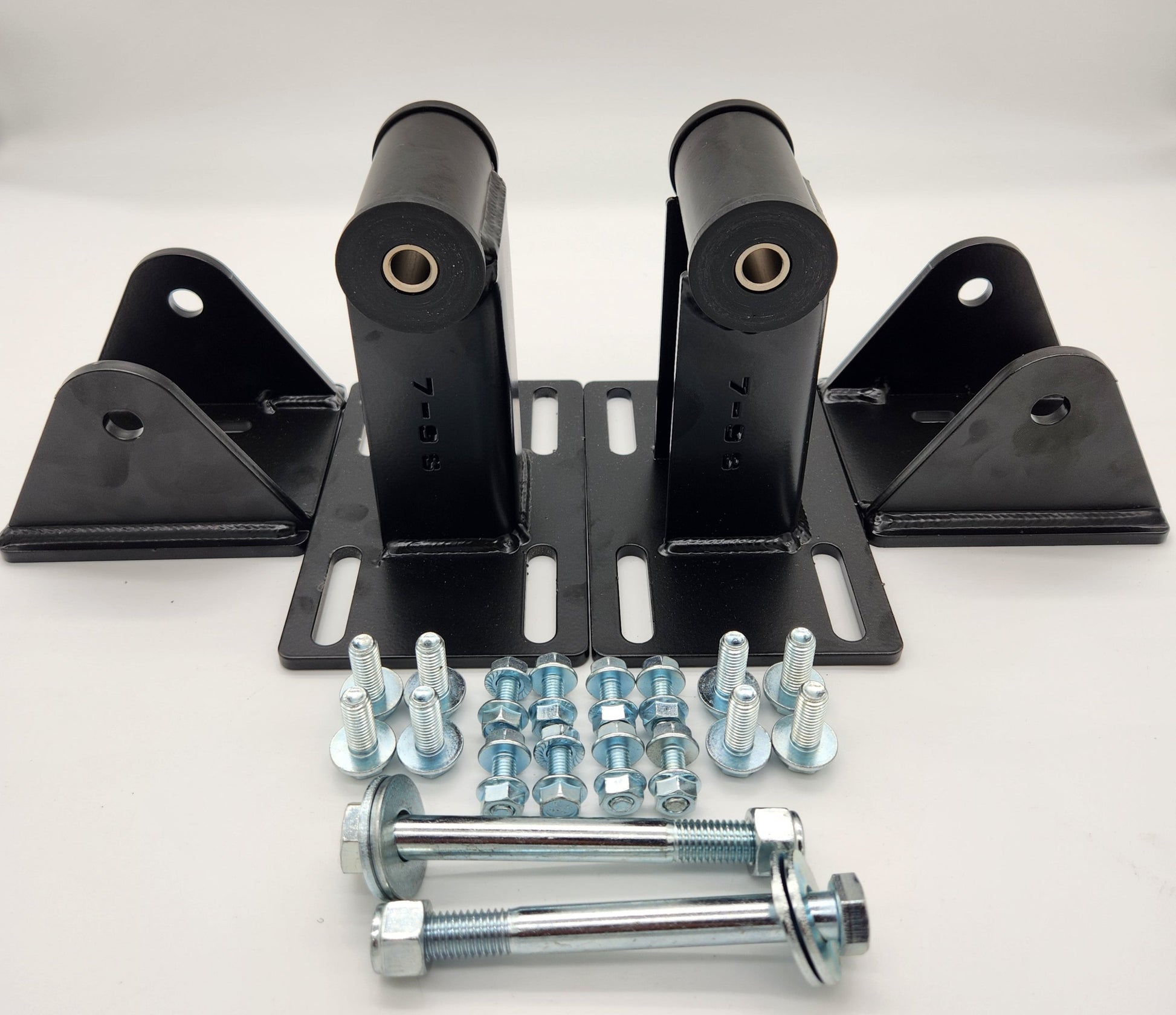

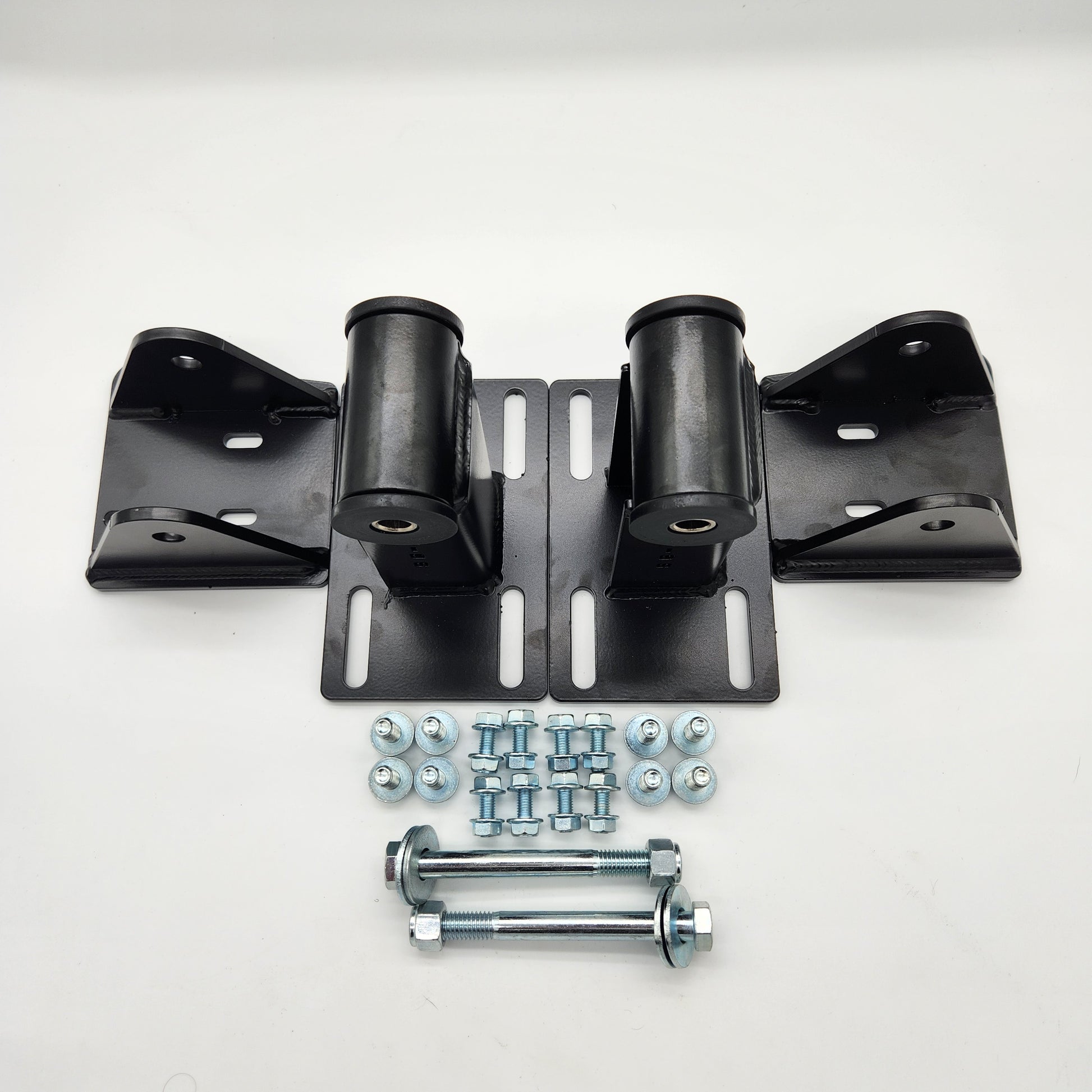

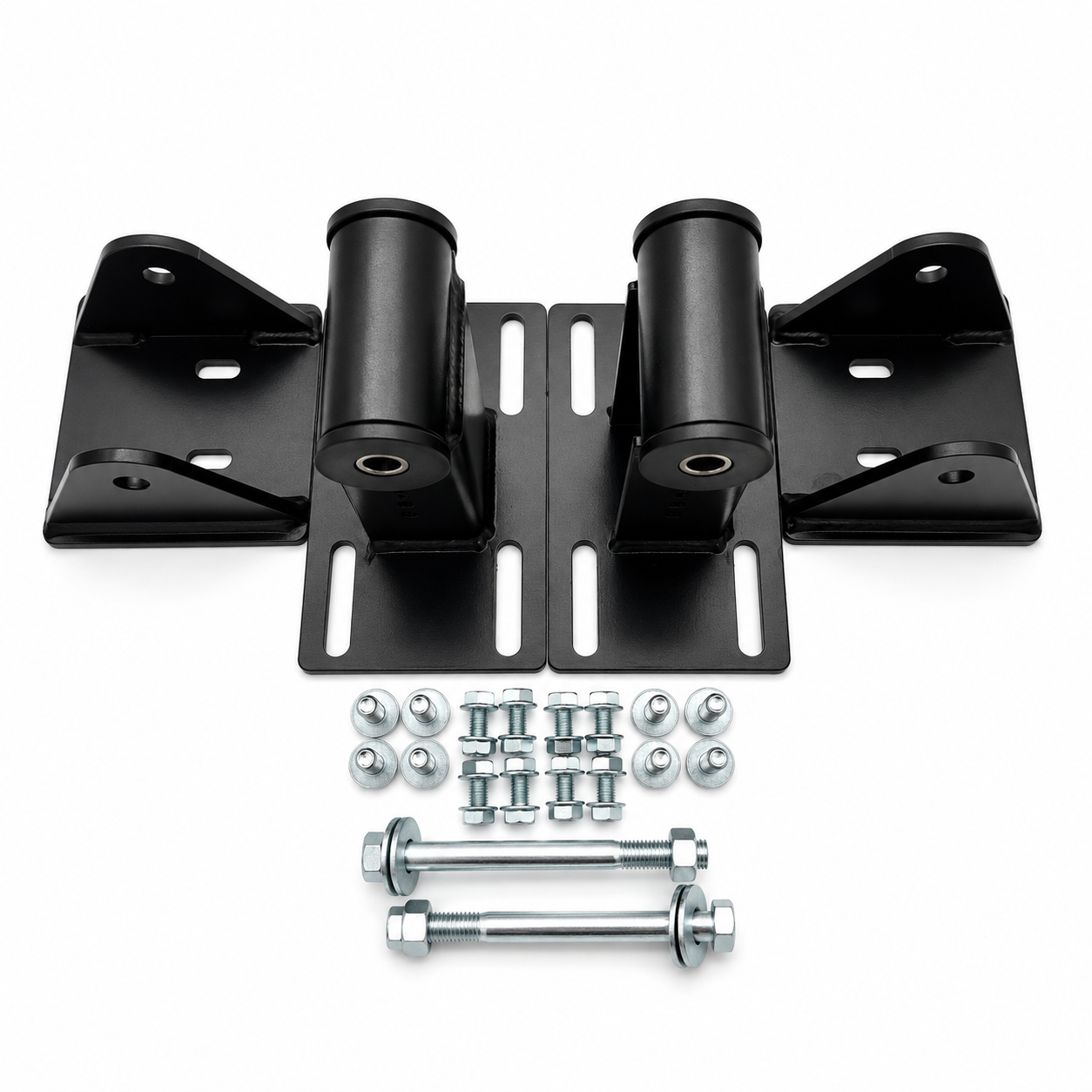

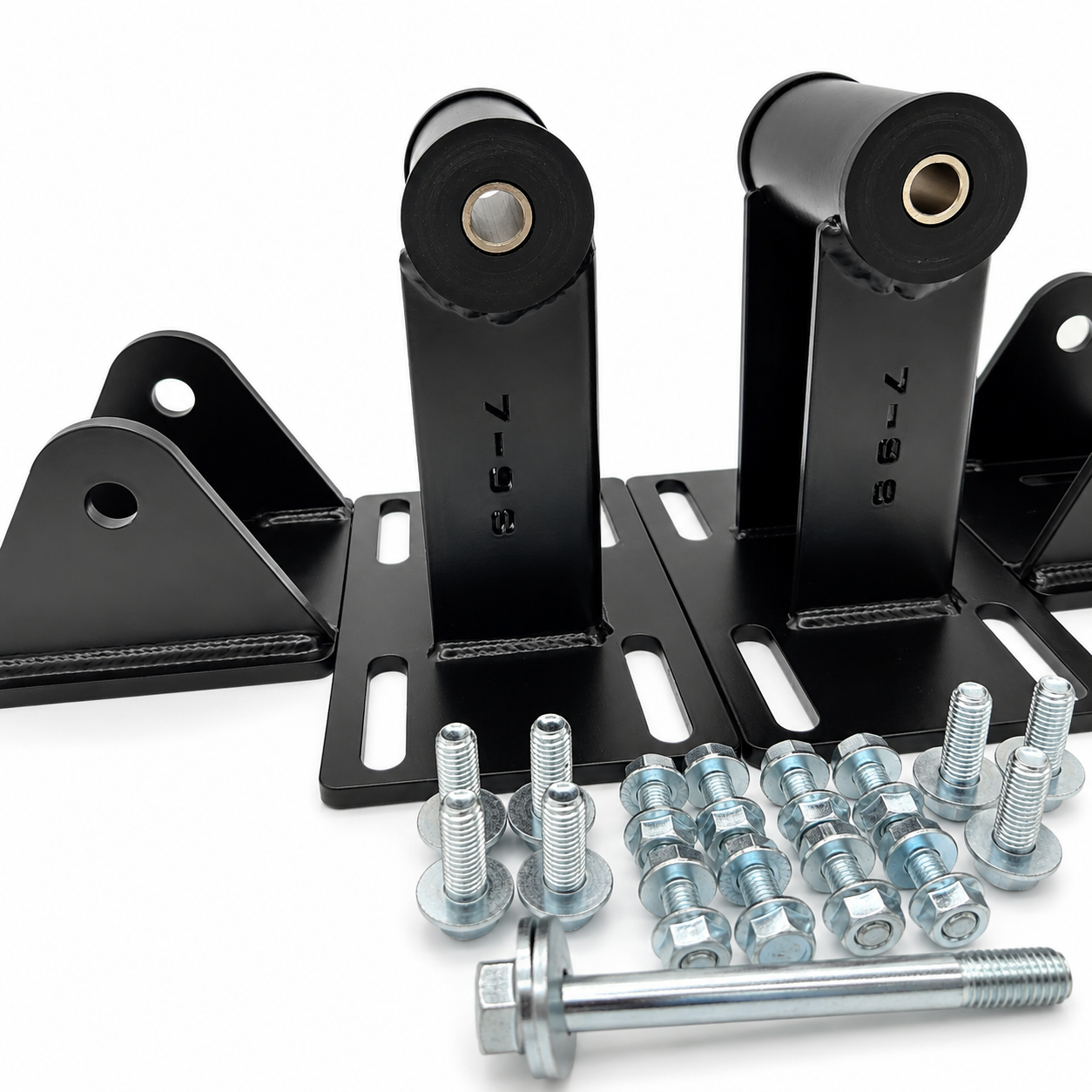

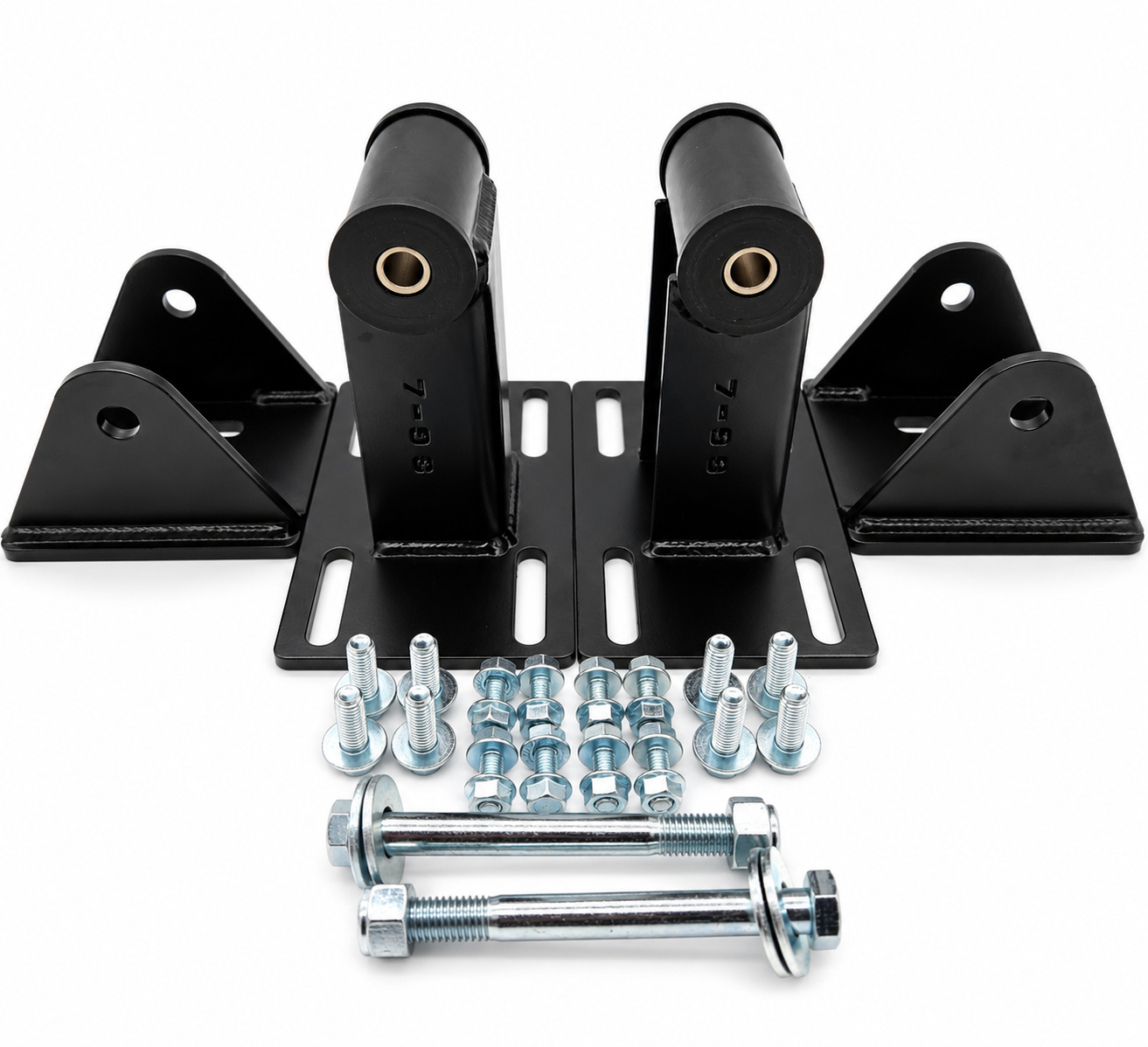

This swap kit is for all 700/900 and S/V90 series RWD Volvo’s. Install ANY LS-based ‘Gen III/IV’ GM V8 engine into your Volvo with this mounting kit, truck engines with the taller intake manifolds included! Included are engineered/FEA’d adjustable mount arms powdercoated with a heavy duty black finish that attach to engine block, 2 isolators, and a complete hardware kit.
